A cordless drill turns battery power into spinning motion at the chuck, controlled by a trigger and a handful of switches that adjust speed, torque, and direction. The parts below cover each piece involved, from the battery that powers it to the light that shows you where you’re drilling.

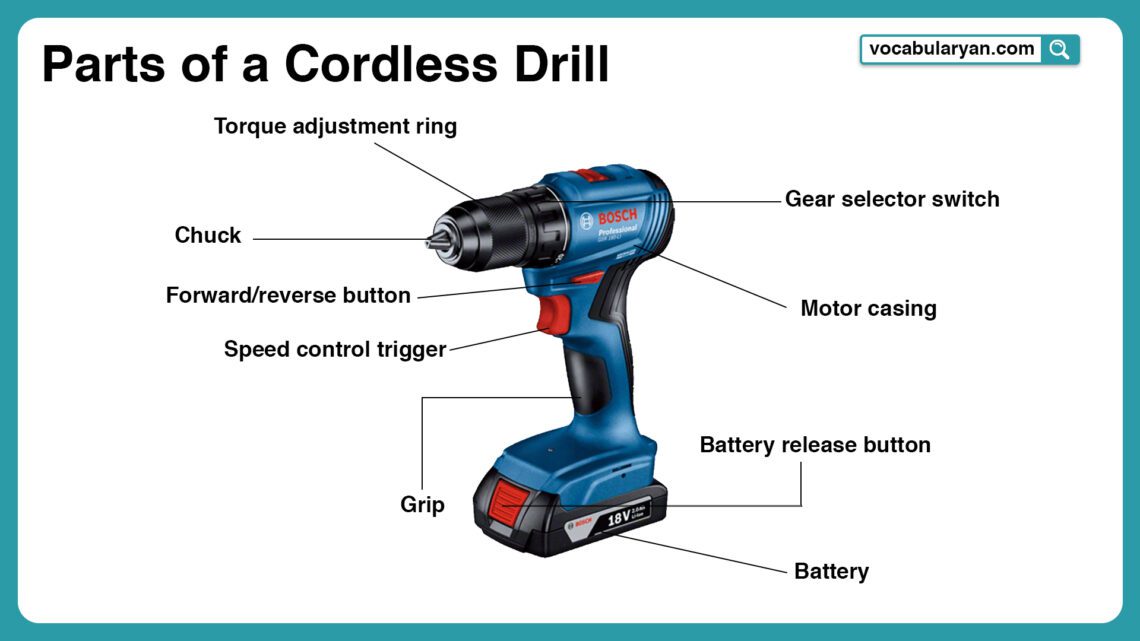

Parts of a Cordless Drill
- Chuck: the clamping mechanism at the front of the drill that holds a drill bit securely in place. It allows quick bit changes while keeping a firm grip during drilling.
- Torque Adjustment Ring: a ring behind the chuck that controls how much twisting force the drill applies before it stops turning. Setting it correctly prevents stripped screws or damaged materials from over-tightening.
- Gear Selector Switch: a mechanical switch that shifts the drill between a low-speed and a high-speed gear range. Low gear gives more control for driving screws, while high gear suits faster drilling through harder material.
- Forward/Reverse Button: a small switch that changes which direction the chuck spins. Reversing it lets you back a screw out instead of driving it in.
- Speed Control Trigger: a pressure-sensitive trigger that adjusts rotation speed within whichever gear is selected. A light press turns the bit slowly, while a firmer press speeds it up.
- Motor Casing: the housing that protects the internal motor and electrical components from dust and impact. It also helps dissipate heat during extended use.
- LED Light: a small light built into the base of the drill near the chuck, switching on automatically when the trigger is pressed. It lights up dark corners, cabinets, or shadowed work areas where the drill itself would otherwise block the view.
- Grip: the rubberized or textured section of the handle you hold during use. Its texture reduces hand fatigue and keeps the drill steady against different surfaces.
- Battery Release Button: a button that unlocks the battery pack so it can slide out for charging or swapping. This lets you keep a charged spare ready instead of stopping work to recharge.
- Battery: a rechargeable lithium-ion pack that supplies power to the motor. Modern packs charge quickly and hold enough charge for extended runtime between swaps.
Interesting Facts About Cordless Drills
- The first cordless drills reached the market in the early 1960s, with broader everyday use following over the following decades.
- High-end cordless drills can reach over 2,000 RPM, making them powerful enough for demanding jobs.
- Some models feature built-in LED lights to illuminate dark work areas.
- The first electric drill was invented in 1895 by Wilhelm Fein.
- Brushless motor drills last longer and run with less heat and friction than brushed models.
FAQs
Q1. What does the torque adjustment ring do?
The torque adjustment ring controls how much twisting force reaches the screw before the drill stops turning, preventing over-tightening and protecting delicate materials.
Q2. How long does a cordless drill battery last?
A cordless drill battery typically lasts from 30 minutes to several hours per charge, depending on the battery’s capacity and how demanding the task is.
Q3. What is the benefit of a brushless motor drill?
A brushless motor drill runs more efficiently, produces less heat, and lasts longer than a traditional brushed motor drill, since it has no brushes to wear down over time.
Q4. What is the difference between the gear selector switch and the speed control trigger?
The gear selector switch shifts the drill between a low and a high gear range, setting the overall speed and torque available. The speed control trigger then fine-tunes rotation speed within whichever gear is selected, based on how hard you press it.
Q5. What does the chuck do on a cordless drill?
The chuck clamps around a drill bit and holds it firmly in place at the front of the drill, allowing bits to be swapped quickly between tasks.
Q6. Why do some cordless drills have an LED light?
An LED light near the chuck switches on when the trigger is pressed, lighting up the exact spot being drilled. This helps in dark cabinets, corners, or work areas where the drill body would otherwise cast a shadow over the bit.
